UNIWRAP 100T

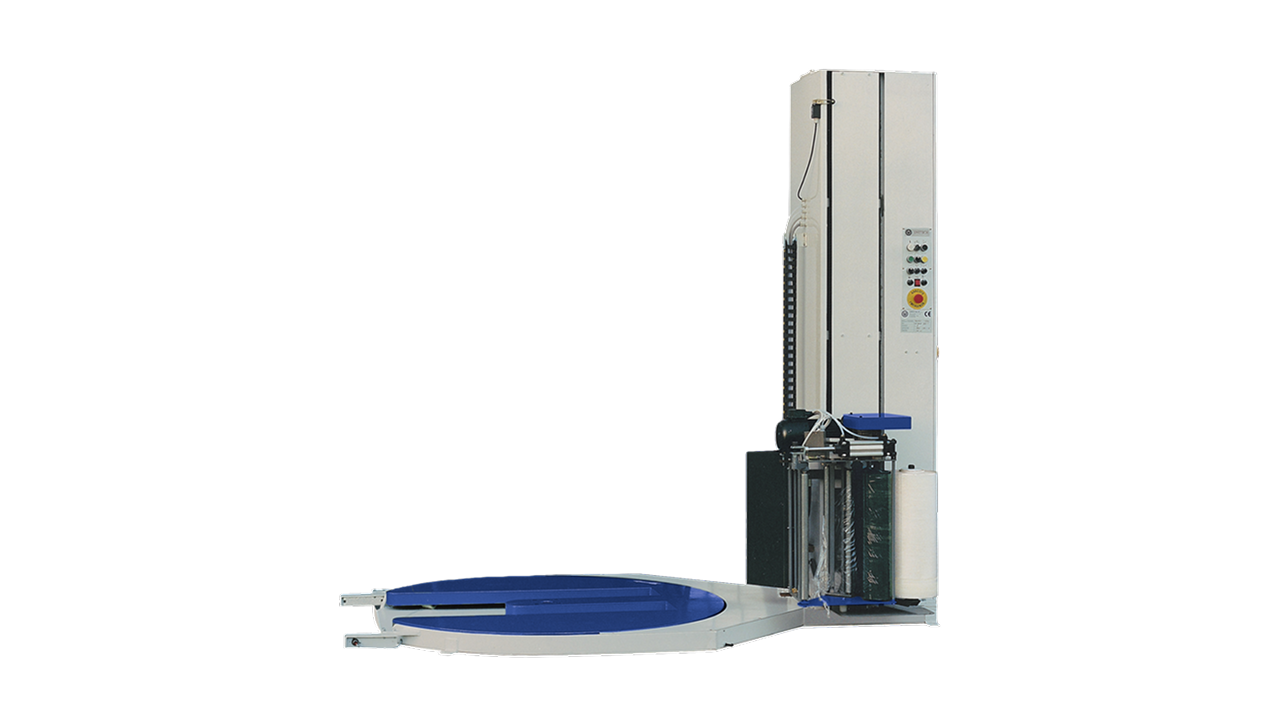

UNIWRAP 100T semi-automatic turntable wrapping machine that allows the use of a pallet jack
Mechanical Structure
Main structure in tubular steel
Main structure built in tubular steel painted with anti-rust primer and multi-layer epoxy color
Reinforced turntable for pallet jack
Steel turntable, 8 mm thickness, vertically reinforced with 10 mm thick calendered plate, supported by vulkollan wheels and central bearing
Belt transmission
Rotation transmission with belt driven by gearmotor
Column with guides
Column built in steel and equipped with "U" guides for the film carriage sliding
Production
BUILT THE WAY YOU NEED IT, Literally
Quality
Designed and built to last over time and to minimize maintenance costs.
Efficiency
Created to minimize operating costs while minimizing environmental impact.
Operating Characteristics
Increased turntable diameter
Rotating turntable with 1,600 mm diameter
Standard load capacity
Load capacity 1,800 kg
Reduced wrapping height
Useful wrapping height 2,100 mm
Progressive rotation control
Progressive start/stop of the rotating table controlled by inverter
Adjustable speed
Rotation speed of the rotating turntable controlled by inverter and adjustable directly from the control panel
Stop in position
Stop of the turntable in fixed position by sensor
Adjustable film tension
Device for adjusting the tension of the stretch film (manual brake on rubber roller)
Adjustable wraps
Number of wrapping turns can be set separately at both the top and bottom of the load
Load height detection
Photocell for automatic detection of the height of the load to be wrapped
Simple wrapping cycle
Program for simple wrapping cycle (only upward)
Cross wrapping cycle
Program for cross wrapping cycle (up and down)
Control panel
Control panel positioned in a suitable space isolated from any other part of the machine and equipped with key locks
Operator panel
Operator panel complete with display and keyboard for: alarm display, manual operation selection, setting of wrapping cycle times
CE compliance
The machine is built in compliance with current CE regulations
