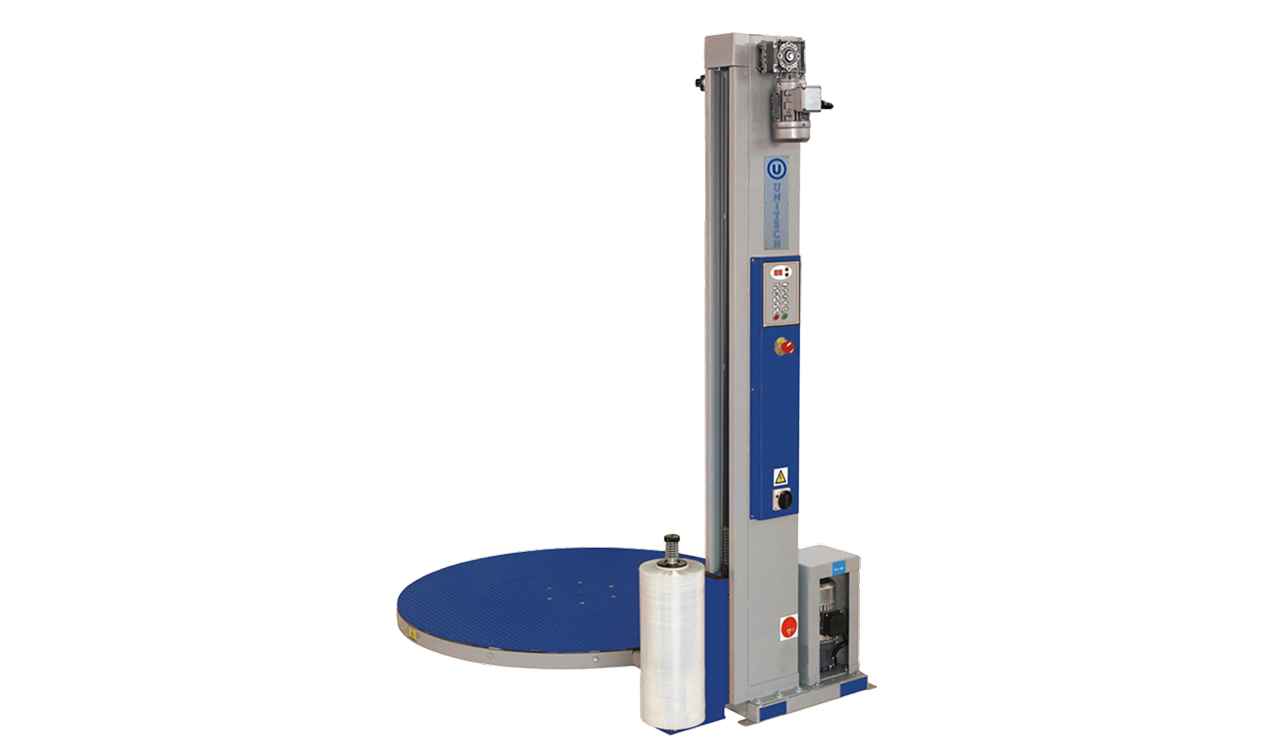

UNIWRAP 80S
UNIWRAP 80S semi-automatic turntable wrapping machine for packaging with stretch film.
Mechanical Structure
Main structure in tubular steel
Main structure built in tubular steel painted with anti-rust primer and multi-layer epoxy color
Standard steel turntable
Steel turntable supported by vulkollan wheels and central bearing
Chain transmission
Rotation transmission with chain driven by gearmotor
Column with guides
Column built in steel and equipped with "U" guides for the film carriage sliding
Production
BUILT THE WAY YOU NEED IT, Literally
Quality
Designed and built to last over time and to minimize maintenance costs.
Efficiency
Created to minimize operating costs while minimizing environmental impact.
Operating Characteristics
Turntable diameter
Rotating turntable with 1,500 mm diameter
Standard load capacity
Load capacity 1,800 kg
Standard wrapping height
Useful wrapping height 2,200 mm
Progressive rotation control
Progressive start/stop of the rotating table controlled by inverter
Adjustable speed
Rotation speed of the rotating turntable controlled by inverter and adjustable directly from the control panel
Stop in position
Stop of the turntable in fixed position by sensor
Carriage speed control
Electronic adjustment of the up and down speed of the film carriage that allows wrapping with different spirals (with inverter)
Carriage with mechanical brake
Film carriage with mechanical brake
Load height detection
Photocell for automatic detection of the height of the load to be wrapped
Adjustable wraps
Number of wrapping turns can be set separately at both the top and bottom of the load
Access for handling
Holes for forklift forks entry in both the front and rear of the machine for easy movement
Simple wrapping cycle
Program for simple wrapping cycle (only upward)
Cross wrapping cycle
Program for cross wrapping cycle (up and down)
Manual cycle
Program for manual wrapping cycle
Control panel
Control panel positioned in a suitable space isolated from any other part of the machine and equipped with key locks
Operator panel
Operator panel complete with display and keyboard for: alarm display, manual operation selection, setting of wrapping cycle times
CE compliance
The machine is built in compliance with current CE regulations
